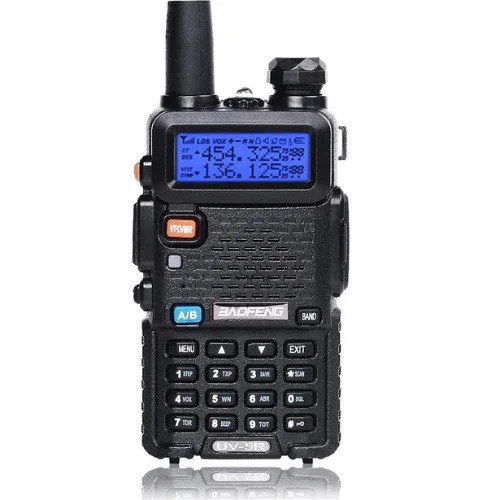

Baofeng UV-5R Dual Band Walkie Talkie

The Baofeng UV-5R Dual Band Walkie Talkie is a handheld VHF/UHF two-way radio with 128 programmable channels, dual-band display, dual standby, selectable transmit power, VOX and PC programmability. The UV-5R supports VHF operation from 136–174 MHz and UHF operation within the documented 400–520 MHz range, together with 25 kHz and 12.5 kHz channel spacing. It also includes CTCSS/DCS tone functions, an LCD display, FM radio reception, an LED flashlight, battery-saving functions and a keypad lock. The exact communication distance depends on operating conditions and should not be treated as a fixed 5 km specification.

Product Features

Dual-Band VHF and UHF Operation

The UV-5R supports VHF and UHF radio communication. The manufacturer documents 136–174 MHz for VHF and 400–520 MHz for UHF on the current product information.

128 Programmable Channels

The radio provides 128 memory channels for storing configured frequencies and channel settings. This allows users to save frequently used channels rather than entering the settings each time.

Selectable Transmit Power

The UV-5R has selectable high and low RF power settings. Baofeng’s current product page lists 5W/1W output, while its detailed specifications identify 4W/1W for the model. For procurement and product listing purposes, the exact variant should be confirmed if the output rating is critical.

Dual Standby and Dual-Frequency Display

The UV-5R provides dual-band and dual-frequency display functions together with dual standby. These controls allow the radio to monitor configured frequencies according to its operating settings.

VOX Function

The UV-5R includes voice-operated transmission, or VOX. The function can be configured through the radio’s supported settings.

CTCSS and DCS Tone Functions

The radio supports CTCSS and DCS tone functions for compatible channel configurations. Baofeng lists 50 CTCSS and 104 DCS tones for the UV-5R.

Wide and Narrow Channel Spacing

The UV-5R supports selectable 25 kHz wideband and 12.5 kHz narrowband operation.

PC Programmable

The UV-5R can be programmed using compatible programming software and cable. This allows channel frequencies and supported radio settings to be configured from a computer.

FM Radio Reception

The UV-5R includes FM broadcast reception in the 65–108 MHz range according to Baofeng’s product information. This is a receive-only FM broadcast function and should not be confused with the radio’s VHF/UHF communication bands.

Built-In LED Flashlight

The radio incorporates an LED flashlight as part of its documented functions.

Battery-Saving and Low-Battery Functions

The UV-5R includes battery-saving and low-battery alert functions. It also provides a time-out timer and keypad lock among its documented operating features.

Product Specifications

• Brand: Baofeng
• Model: UV-5R
• Product type: Dual-band handheld two-way radio
• VHF frequency range: 136–174 MHz
• UHF frequency range: 400–520 MHz
• FM broadcast reception: 65–108 MHz
• Channel capacity: 128 channels
• Output power: 5W/1W according to Baofeng’s current product listing
• Detailed RF power specification: 4W/1W on the BTECH specification
• Channel spacing: 25 kHz wideband / 12.5 kHz narrowband
• Frequency stability: ±2.5 ppm
• Operating voltage: DC 7.4V
• Battery: Lithium-ion; capacity varies by documented UV-5R specification/version
• Antenna: Dual-band high-gain antenna
• Antenna impedance: 50 ohms
• Antenna connector: SMA-Female compatible
• Memory channels: 128
• CTCSS: 50 tones
• DCS: 104 tones
• VOX: Yes
• Dual standby: Yes
• Dual-frequency display: Yes
• PC programmable: Yes
• FM radio: Yes
• LED flashlight: Yes
• Emergency alert: Yes
• Low-battery alert: Yes
• Battery saver: Yes
• Time-out timer: Yes
• Keypad lock: Yes
• Accessory connector: Kenwood 2-pin standard
• Operation mode: Simplex or semi-duplex

Communication Range

The product title supplied for this listing describes the Baofeng UV-5R as a 5 km range walkie talkie, but a fixed 5 km communication range should not be published as a guaranteed product specification without evidence for the exact unit and operating conditions.

Actual radio communication distance can vary depending on factors such as terrain, buildings, obstructions, antenna configuration, frequency conditions and the installation or operating environment. Baofeng’s published UV-5R specifications do not establish a universal 5 km range.

For use in Kenya, customers should ensure that the frequencies selected for transmission and radio operation comply with applicable communications requirements.

Package Information

The exact accessories supplied should be confirmed against the package being offered by Zeneric Networks Limited, as UV-5R packages and variants can differ. Baofeng documentation for UV-5R packages lists accessories such as a battery, antenna, headset or earpiece, belt clip, hand strap, charger, adapter and user manual depending on the package.

Order the Baofeng UV-5R Dual Band Walkie Talkie from Zeneric Networks Limited. Contact our sales team for current pricing, availability and package details.
