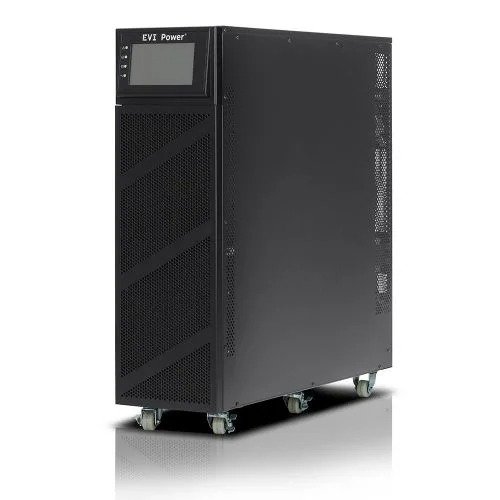

EVI 10000VA / 9000W Tower Online Single Phase UPS with Double Conversion, N+X Redundancy, and LCD Display – Terminal Port Output (EP-UPS10000Y11OT)

The EVI 10000VA / 9000W Tower Online Single Phase UPS provides high-capacity, enterprise-grade power protection for critical IT systems, data centers, and industrial equipment. Featuring online double conversion with DSP control, wide input voltage and frequency ranges, and N+X parallel redundancy, this UPS delivers continuous, clean, and reliable power while supporting generator input and Eco mode for energy efficiency. With rotating LCD display, terminal port output, multiple communication options including RS232, USB, and optional SNMP/parallel/relay cards, and cold start capability, it ensures full control, monitoring, and uptime for mission-critical operations.

Product Features

High Capacity 10000VA / 9000W Output

Designed for enterprise and industrial applications, providing robust backup and conditioning for servers, networking equipment, storage systems, and other critical loads.

Online Double Conversion with DSP Control

Ensures clean, stable AC output by continuously converting incoming AC to DC and back, with digital signal processor (DSP) control for precise voltage regulation and minimal transfer time.

N+X Parallel Redundancy

Supports parallel configurations to increase system reliability and scalability, allowing multiple UPS units to share load and provide backup in case of a single UPS failure.

Wide Input Voltage and Frequency Range

Accepts 120–276V AC input and 45–55Hz (50Hz nominal) or 54–66Hz (60Hz nominal), ensuring continuous operation even under unstable utility power or generator conditions.

High Output Power Factor

Delivers a high 0.9 power factor to connected loads, maximizing usable capacity and efficiency.

Eco Mode for Energy Efficiency

Optimizes energy usage without compromising protection, reducing operational costs during normal power conditions.

Cold Start Capability

Allows the UPS to power connected equipment directly from the battery even when mains power is unavailable.

Rotating LCD Display

Provides real-time information on input/output voltage, load, battery status, fault alerts, and operational mode for easy monitoring in tower installations.

Multiple Communication and Management Options

Includes RS232 and USB ports for standard monitoring. Optional SNMP, parallel, and relay cards enable network-based management, load sharing, and advanced automation.

Terminal Port Input/Output

Offers direct connection for high-power loads via terminal ports, suitable for large-scale or custom installations.

Self-Test at Startup

Performs automatic self-checks on the battery and system during startup to ensure reliability and readiness.

Product Specifications

• Model: EP-UPS10000Y11OT
• Capacity: 10000VA / 9000W
• Topology: Online Double Conversion
• Redundancy: N+X parallel support
• Input Voltage Range: 120–276V AC
• Input Frequency Range: 50Hz: 45–55 Hz / 60Hz: 54–66 Hz
• Input Current Harmonic: <3%
• Output Voltage: 230V AC nominal (adjustable depending on system)
• Output Power Factor: 0.9
• Supports Generator Input: Yes
• ECO Mode: Supported
• Cold Start Function: Yes
• Self-Test at Startup: Yes
• Communication Ports: RS232, USB, optional SNMP/Parallel/Relay cards
• Display: Rotating LCD
• Output Connection: Terminal port
• Warranty: 2 years (1 year on battery)
• Intended Use: Enterprise servers, data centers, network infrastructure, industrial systems
