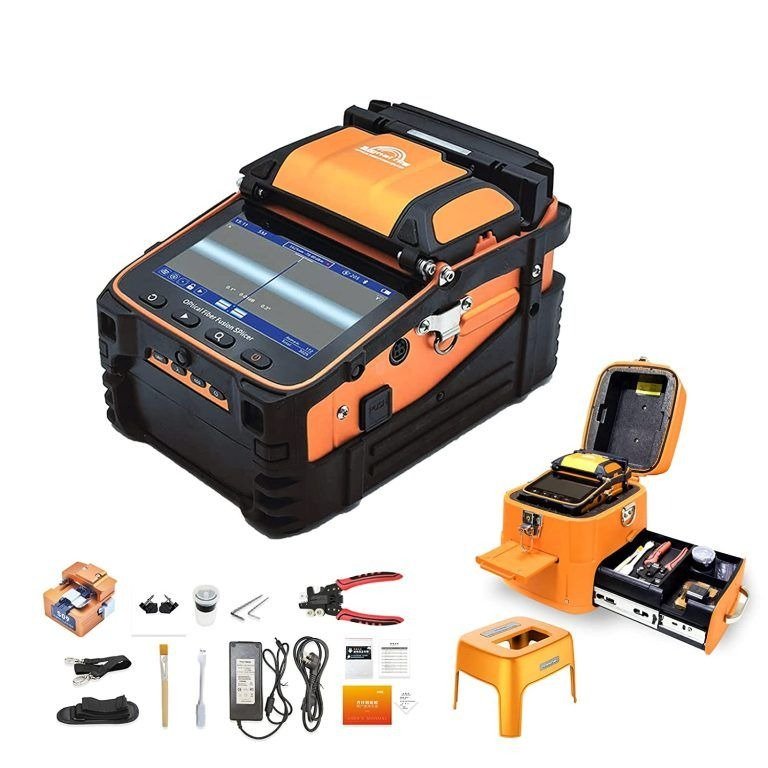

Fiber Fusion Splicing Machine Signal Fire AI-9 Core Alignment Splicer

The Signal Fire AI-9 Fiber Fusion Splicing Machine is a professional-grade core alignment splicer engineered for fast, precise, and reliable fiber optic cable installation and maintenance. Designed for FTTH, FTTB, backbone, and enterprise network deployments, the AI-9 delivers high-accuracy core-to-core alignment, low splice loss, and rapid heating cycles. With an integrated optical power meter, visual fault locator, and large touchscreen interface, this compact and rugged fusion splicer enhances field efficiency while ensuring consistent fiber performance in demanding environments.

Product Features

Core-to-Core Alignment Technology

The advanced core alignment system uses high-resolution imaging and precision motors to align fiber cores accurately, reducing splice loss and improving network stability.

Fast Splicing and Heating Time

Optimized for field productivity, the AI-9 delivers quick splice times and short heat shrink protection cycles, minimizing installation downtime.

Integrated Optical Power Meter and VFL

Built-in optical power meter and visual fault locator simplify testing and troubleshooting, eliminating the need for additional external tools during fiber deployment.

Large High-Resolution Touchscreen

The intuitive color touchscreen provides clear fiber images, splice results, and system status information, making operation simple and efficient in field conditions.

Rugged and Portable Design

Compact and lightweight with a durable construction, the unit is suitable for outdoor and on-site applications, including harsh environments.

Long Battery Life

Equipped with a high-capacity rechargeable battery, the splicer supports extended field operations without frequent recharging.

Wide Fiber Compatibility

Compatible with SM, MM, DS, NZDS, and other standard optical fiber types, making it suitable for diverse telecom and data network installations.

Product Specifications

• Model: Signal Fire AI-9
• Alignment Method: Core alignment
• Applicable Fiber Types: SM (G.652/G.657), MM (G.651), DS (G.653), NZDS (G.655)
• Typical Splice Loss:
  • SM: 0.02 dB
  • MM: 0.01 dB
  • DS: 0.04 dB
  • NZDS: 0.04 dB
• Splicing Time: Approximately 6 to 8 seconds
• Heating Time: Approximately 15 to 18 seconds
• Display: High-resolution color touchscreen
• Integrated Functions: Optical power meter, visual fault locator
• Fiber Cleave Length: 8 to 16 mm
• Return Loss: Better than 60 dB
• Battery Capacity: Rechargeable lithium battery (supports multiple splice and heat cycles per charge)
• Operating Temperature: -10°C to 50°C
• Storage Temperature: -40°C to 80°C
• Dimensions: Compact handheld design
• Application: FTTH installation, telecom backbone, data centers, enterprise fiber networks
