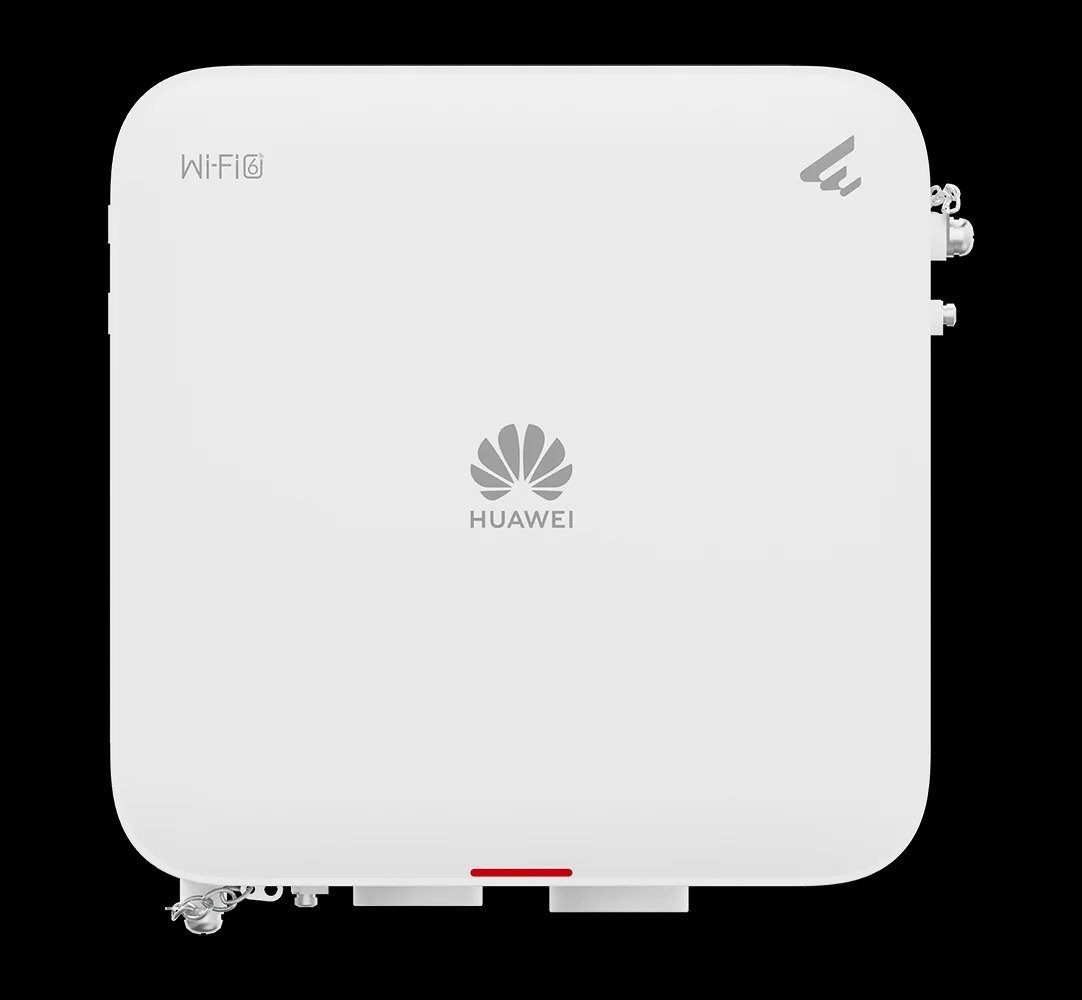

Huawei eKitEngine AP761 Access Point

The Huawei eKitEngine AP761 Access Point is a high-performance outdoor Wi-Fi 6 device designed for large-scale, high-density networks in campuses, public spaces, and enterprise deployments. Built with industrial-grade protection, this access point provides reliable dual-band connectivity, high throughput, and multi-user support, ensuring seamless wireless coverage even in harsh outdoor conditions. With flexible uplink options, built-in directional antennas, and advanced management features, the AP761 delivers stable, secure, and efficient wireless performance for demanding environments.

Product Features

Wi-Fi 6 Dual-Band Connectivity

Supports the latest Wi-Fi 6 (802.11ax) standard on both 2.4 GHz and 5 GHz bands, offering higher throughput, reduced latency, and better efficiency in high-density environments.

High Data Throughput

Provides a combined data rate of up to 1.775 Gbps using advanced technologies such as OFDMA, MU-MIMO, and 1024-QAM for faster and more reliable wireless communication.

Built-In Directional Antennas

Optimized directional antennas deliver extended coverage and stable signal distribution, ensuring reliable connectivity for outdoor deployments.

Flexible Uplink Options

Equipped with 1 GE Base-T port and 1 GE SFP optical port, the AP761 allows versatile network uplinks and supports Power over Ethernet for simplified installation.

Multi-User Support

MU-MIMO technology enables simultaneous data transmission to multiple devices, improving network efficiency and performance in crowded areas.

Industrial-Grade Protection

IP68-rated waterproof and dustproof housing combined with 6 kA surge protection ensures durability and reliability in challenging outdoor environments.

Advanced Management Modes

Supports cloud-based, Fit, and Fat management modes, allowing centralized control and flexible deployment to meet diverse network requirements.

Product Specifications

• Wireless standard: IEEE 802.11ax (Wi-Fi 6), backward compatible with 802.11a/b/g/n/ac
• Frequency bands: 2.4 GHz and 5 GHz dual-band
• Maximum data rate: Up to 1.775 Gbps
• Radio technologies: MU-MIMO, OFDMA, 1024-QAM
• Antennas: Built-in directional antennas
• Antenna gain: 2.4 GHz: 10 dBi, 5 GHz: 11 dBi
• Ports: 1 × GE Base-T (PoE-In), 1 × GE SFP optical uplink
• Power supply: PoE (IEEE 802.3af/at)
• Maximum power consumption: 17.7 W
• Management modes: Cloud, Fit, Fat
• Maximum users: Up to 1024 (512 per band)
• Recommended users: 120 (typical outdoor coverage)
• Protection rating: IP68 waterproof and dustproof
• Surge protection: 6 kA
• Operating temperature: –40 °C to +65 °C
• Operating humidity: 0–100%
• Dimensions: 69 mm × 200 mm × 200 mm
• Weight: 1.91 kg
• Bluetooth: BLE 5.2
