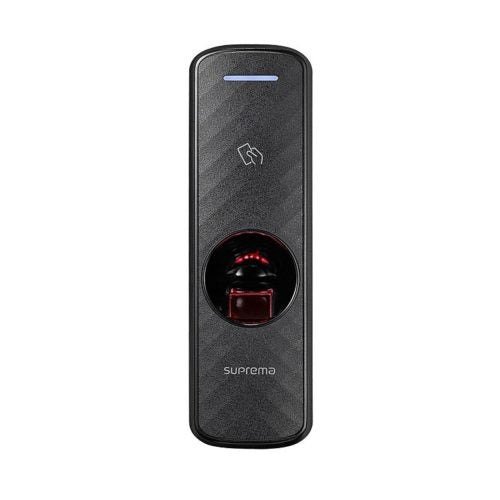

Suprema BioEntry R2 Compact Fingerprint Reader BER2-OD Outdoor Access Control Device

The Suprema BioEntry R2 Compact Fingerprint Reader BER2-OD is a high-performance outdoor biometric access control device designed for secure and reliable identity authentication. Powered by Suprema’s advanced fingerprint algorithm and multispectral imaging technology, the BioEntry R2 delivers fast matching speed and high accuracy, even in challenging environments. With its IP67-rated housing, slim mullion-style design, and support for multiple credential technologies including RFID cards and mobile access, the BER2-OD is ideal for commercial buildings, industrial facilities, and high-security perimeter doors.

Product Features

Advanced Fingerprint Recognition Technology

Equipped with Suprema’s latest biometric algorithm for high-speed matching and enhanced accuracy, even with low-quality or partial fingerprints.

Multispectral Optical Sensor

Provides reliable authentication under various environmental conditions and improves resistance to spoofing attempts.

Outdoor-Rated IP67 Protection

Designed for harsh outdoor environments with dustproof and waterproof construction.

Multi-Credential Support

Supports fingerprint authentication, RFID cards, and mobile credentials for flexible access control deployment.

Compact Mullion Design

Slim form factor allows easy installation on narrow door frames and space-constrained entry points.

High-Speed Matching Performance

Fast 1:1 and 1:N identification suitable for high-traffic access points.

Advanced Security and Encryption

Secure data communication with encrypted fingerprint templates and secure boot protection.

Product Specifications

• Model: BER2-OD
• Authentication methods: Fingerprint, RFID card, mobile access
• Fingerprint sensor type: Optical multispectral sensor
• Maximum fingerprint templates: Up to 10,000 users
• Maximum card users: Up to 20,000 users
• CPU: 1.0 GHz processor
• Memory: 8 GB flash + 1 GB RAM
• Communication interfaces: TCP/IP, RS-485, Wiegand, OSDP
• Power supply: 12V DC
• Protection rating: IP67
• Operating temperature: -20°C to +50°C
• Mounting type: Mullion mount
• Application: Outdoor access control systems
