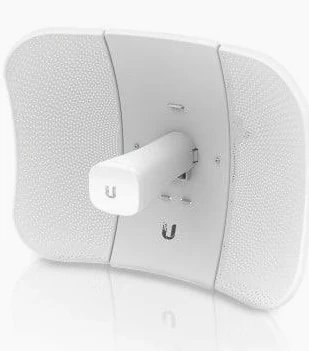

Ubiquiti airMAX LiteBeam Gen 2 5AC 5GHz 23 dBi CPE LBE-5AC-Gen2

The Ubiquiti airMAX LiteBeam Gen 2 5AC (LBE-5AC-Gen2) is a high-performance 5GHz outdoor wireless CPE designed for long-range point-to-point (PtP) and point-to-multipoint (PtMP) wireless networking. Equipped with a 23 dBi high-gain directional antenna and advanced airMAX ac technology, it delivers fast, reliable wireless connectivity with low latency and excellent interference resistance. Its lightweight integrated design, Gigabit Ethernet connectivity, and dedicated management WiFi make installation and configuration simple, making it an ideal solution for wireless ISPs, enterprise networks, surveillance systems, and remote site connectivity.

Product Features

High-Gain 23 dBi Directional Antenna

The integrated 23 dBi directional antenna provides excellent signal strength for long-distance wireless links while minimizing interference from nearby wireless networks.

Advanced airMAX ac Technology

Powered by Ubiquiti’s airMAX ac technology, the LiteBeam Gen 2 delivers improved throughput, enhanced spectral efficiency, and reduced network latency for demanding outdoor wireless applications.

Dedicated Management WiFi

A built-in management WiFi radio allows installers to configure and monitor the device wirelessly using the UISP Mobile App, simplifying deployment and maintenance without requiring a wired connection.

Gigabit Ethernet Connectivity

The Gigabit Ethernet port supports high-speed data transmission, ensuring the wireless link can fully utilize available network bandwidth.

Integrated Radio Design

The radio is integrated directly into the antenna feed using Ubiquiti’s InnerFeed technology, eliminating RF cable losses and improving overall wireless performance.

Lightweight and Durable Outdoor Construction

Designed for outdoor environments, the LiteBeam Gen 2 features a lightweight yet durable enclosure that withstands harsh weather conditions, including high winds and extreme temperatures.

Simple Pole-Mount Installation

The included pole-mount kit and adjustable mounting system enable quick installation and precise antenna alignment for optimal signal performance.

Product Specifications

• Model: Ubiquiti airMAX LiteBeam Gen 2 5AC
• Model Number: LBE-5AC-Gen2
• Device Type: Outdoor Wireless CPE
• Wireless Technology: airMAX ac
• Frequency Band: 5 GHz
• Operating Frequency: 5150–5875 MHz
• Antenna Gain: 23 dBi
• Maximum Transmit Power: 25 dBm
• Ethernet Port: 1 × 10/100/1000 Gigabit RJ45
• Power Method: Passive 24V PoE
• Power Supply: 24V 0.3A Gigabit PoE Adapter (Included)
• Maximum Power Consumption: 7 W
• Management Interface: Dedicated 2.4 GHz WiFi Management Radio
• Channel Widths: 10, 20, 30, 40, 50, 60, and 80 MHz (PtP); up to 40 MHz (PtMP)
• Mounting: Pole-mount kit included
• Wind Survivability: Up to 200 km/h (125 mph)
• Operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Humidity: 5% to 95% non-condensing
• Certifications: CE, FCC, IC
