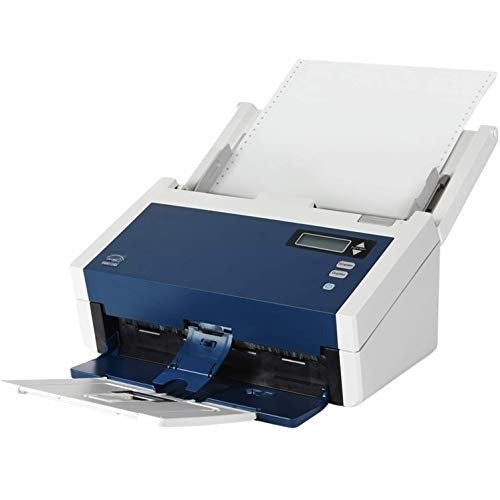

Xerox DocuMate 6460 Duplex Document Scanner, 70 PPM

The Xerox DocuMate 6460 Duplex Document Scanner is a high-volume sheet-fed scanner designed for organizations that need to digitize substantial quantities of paper documents. It scans at up to 70 pages per minute and 140 images per minute, uses a 120-sheet automatic document feeder, supports duplex scanning, provides up to 600 dpi optical resolution, and connects to a computer through USB 3.0. Its ultrasonic multi-feed detection, Visioneer OneTouch and Visioneer Acuity software support document handling and image-processing workflows, while the manufacturer documentation specifies a daily duty cycle of up to 11,000 pages.

Product Features

70 PPM Duplex Scanning

The DocuMate 6460 scans at up to 70 pages per minute or 140 images per minute at 200 dpi. Duplex scanning captures both sides of a document as it passes through the automatic document feeder. At 300 dpi, some published specifications list a lower throughput, so the maximum 70 ppm figure should be understood in relation to the selected resolution and scanning conditions.

120-Sheet Automatic Document Feeder

The scanner has a 120-sheet automatic document feeder based on 20 lb paper. The feeder is designed to handle mixed document sizes and media, including documents such as checks, ID cards and other supported materials.

600 DPI Optical Resolution

The DocuMate 6460 provides up to 600 dpi optical resolution. Published specifications also list higher interpolated resolutions when Visioneer Acuity software is used. Optical resolution is the more relevant specification when comparing the scanner’s native scanning capability.

Ultrasonic Multi-Feed Detection

Ultrasonic multi-feed detection monitors documents as they pass through the feeder and can identify situations where multiple sheets are moving through together. This is useful when processing batches of documents where overlapping sheets could otherwise result in missed pages.

USB 3.0 Connectivity

The DocuMate 6460 uses a high-speed USB 3.0 connection for communication with the host computer and is compatible with USB 2.0.

Long Document Scanning

The scanner supports documents up to 9.5 x 236 inches (241 x 5,994 mm) through the ADF at 200 dpi, while the maximum scan area is specified as 8.5 x 236 inches (216 x 5,994 mm) at 200 dpi. This allows it to accommodate documents substantially longer than standard A4 or letter-sized pages when the relevant scanning settings are used.

Wide Range of Document Media

The ADF supports paper from approximately 27 to 413 g/m², according to the published specifications. The scanner can also handle supported media such as plastic ID cards, photographs and business cards.

Visioneer OneTouch

Visioneer OneTouch provides configurable scanning workflows that can send scanned documents to predefined destinations such as email, folders, printers or supported cloud destinations. The actual destinations and workflow options depend on the installed software and configuration.

Visioneer Acuity Image Processing

Visioneer Acuity provides image-processing functions including auto-crop, auto-straighten, auto-rotate and other image enhancement features. It also supports functions such as barcode and patch-code detection according to the product documentation.

Compact Desktop Design

The DocuMate 6460 is a desktop sheet-fed scanner designed around an automatic document feeder rather than an integrated flatbed. With the paper trays collapsed, published specifications give dimensions of approximately 316 x 168 x 191 mm.

Windows-Based Scanning

Published documentation specifies support for Windows operating systems and drivers including TWAIN, ISIS and WIA. The exact supported Windows versions depend on the available driver and software package.

Product Specifications

• Brand: Xerox
• Model: DocuMate 6460
• Model number: XDM6460-U
• Product type: Duplex sheet-fed document scanner
• Scanning method: Duplex automatic document feeder
• Scanning speed: Up to 70 ppm / 140 ipm
• Optical resolution: 600 dpi
• Interpolated resolution: Up to 1,200 dpi with Visioneer Acuity
• ADF capacity: 120 sheets
• Daily duty cycle: Up to 11,000 pages
• Image sensor: CCD
• Light source: LED
• Output bit depth: 24-bit colour, 8-bit grayscale, 1-bit black and white
• ADF minimum document size: 51 x 51 mm
• ADF maximum document size: 241 x 5,994 mm at 200 dpi
• Maximum scan area: 216 x 5,994 mm at 200 dpi
• ADF paper thickness: Approximately 27–413 g/m²
• Maximum card thickness: 1.25 mm
• Supported media: Paper, plastic ID cards and photos
• Interface: USB 3.0, USB 2.0 compatible
• Drivers: TWAIN, ISIS and WIA
• Scanning software: Visioneer OneTouch and Visioneer Acuity
• Optional accessory: Xerox Passport Scanner Accessory
• Operating system: Windows
• Dimensions with trays collapsed: Approximately 316 x 168 x 191 mm
• Dimensions with trays extended: Approximately 316 x 239 x 680 mm
• Weight: Approximately 4.17 kg
• Power: 100–240 V AC, 50–60 Hz
• Daily scanning volume: Up to 11,000 pages according to the manufacturer documentation

Who Is the Xerox DocuMate 6460 Suitable For?

The Xerox DocuMate 6460 is designed for high-volume document scanning where organizations need to process batches of paper documents through an automatic feeder. Its combination of 70 ppm scanning, duplex operation, 120-sheet ADF and an 11,000-page daily duty cycle makes the specification relevant to document-intensive office environments.

It can be considered for organizations handling documents such as forms, records, invoices, correspondence, checks, ID cards and other supported media. The appropriate scanner should ultimately be selected according to the document types, daily volume, required resolution and software environment.

Document Handling and Image Processing

The DocuMate 6460 combines document-feeding features with software-based image processing. Ultrasonic multi-feed detection helps identify multiple sheets entering the feeder together, while Visioneer Acuity provides image-processing functions such as auto-crop, auto-straighten and auto-rotate.

This combination is particularly relevant when scanning batches of documents that need to be converted into consistent digital files.

Why Choose the Xerox DocuMate 6460?

The DocuMate 6460 brings together 70 ppm duplex scanning, a 120-sheet ADF, 600 dpi optical resolution, USB 3.0 connectivity and an 11,000-page daily duty cycle in a desktop document scanner. It also supports long documents and a range of document media, while Visioneer software provides configurable scanning and image-processing functions.

For organizations comparing document scanners in Kenya, these specifications provide useful points for comparing the DocuMate 6460 with other models according to scanning volume, speed, feeder capacity and document requirements.
