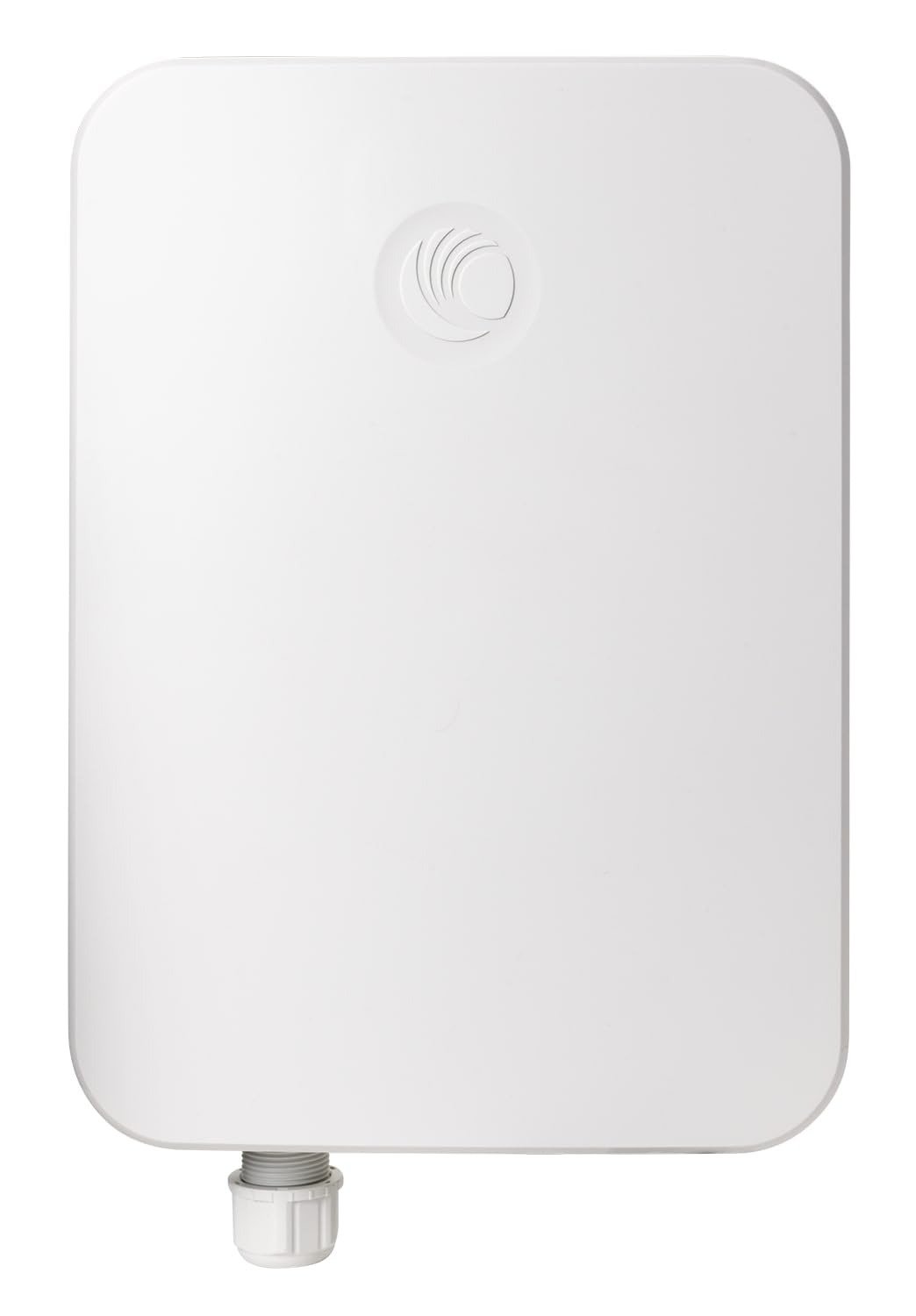

Cambium cnPilot e510 Wi-Fi 5 Outdoor Access Point

The Cambium cnPilot e510 is a rugged, enterprise-grade Wi-Fi 5 outdoor access point designed to deliver reliable dual-band wireless connectivity in challenging environments. Built for campuses, hospitality venues, industrial sites, and public Wi-Fi deployments, the e510 supports 802.11ac Wave 2 technology with MU-MIMO for high client capacity and improved throughput. Its IP67-rated enclosure, integrated high-gain antennas, and centralized cloud or on-premises management make it ideal for extending secure wireless coverage to outdoor areas while maintaining enterprise performance and control.

Product Features

802.11ac Wave 2 with MU-MIMO

Supports dual-band 2.4 GHz and 5 GHz operation with 2×2 MU-MIMO, delivering improved efficiency and higher aggregate throughput for multiple simultaneous users.

Outdoor-Rated IP67 Enclosure

Sealed, weatherproof housing protects against dust, rain, and extreme temperatures, ensuring dependable operation in harsh outdoor conditions.

Integrated High-Gain Antennas

Built-in omnidirectional antennas optimize outdoor coverage without requiring external antenna components.

Centralized Cloud or On-Premises Management

Managed via Cambium cnMaestro for zero-touch provisioning, monitoring, configuration, and remote troubleshooting.

Advanced Security

Supports WPA2-Enterprise, 802.1X authentication, secure guest access, VLAN segmentation, and rogue AP detection.

Gigabit Ethernet with PoE Support

Single Gigabit Ethernet port with 802.3af PoE support simplifies installation and reduces cabling requirements.

Product Specifications

• Wi-Fi standard: IEEE 802.11a/b/g/n/ac Wave 2
• Frequency bands: 2.4 GHz and 5 GHz
• MIMO configuration: 2×2 MU-MIMO
• Maximum data rate: Up to 1.167 Gbps aggregate
• Ethernet port: 1 x 10/100/1000 Mbps
• Power method: 802.3af PoE
• Enclosure rating: IP67 outdoor rated
• Antennas: Integrated omnidirectional
• Operating temperature: -30°C to +60°C
• Management: cnMaestro cloud or on-premises
• Mounting options: Wall or pole mount
