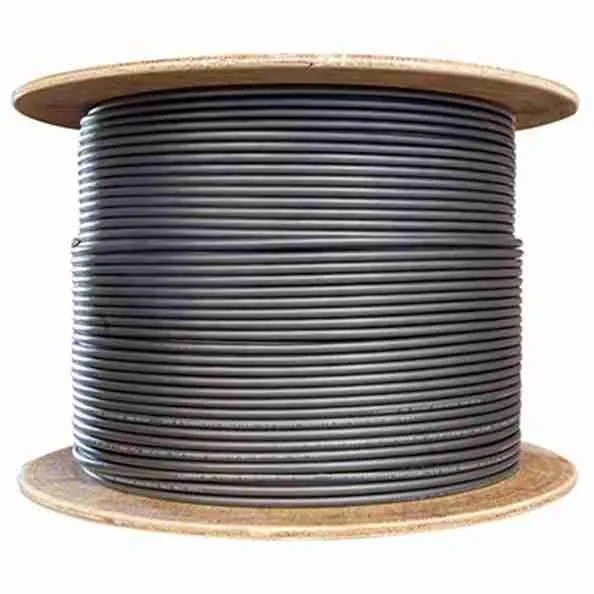

Giganet GN-C6A-F/UTP-LDPE Category 6A Solid F/UTP PVC Outdoor Cable

The Giganet GN-C6A-F/UTP-LDPE Category 6A Solid F/UTP PVC Outdoor Cable is a high-performance networking solution designed for demanding outdoor installations and structured cabling systems. Engineered to support 10 Gigabit Ethernet applications, this Cat 6A cable features foil shielding for enhanced protection against electromagnetic interference and crosstalk. With solid copper conductors and a durable LDPE outer sheath suitable for outdoor environments, it ensures reliable high-speed data transmission over extended distances in commercial, industrial, and enterprise networks.

Product Features

Category 6A 10 Gigabit Performance

Supports data transmission speeds up to 10 Gbps with a bandwidth of up to 500 MHz, making it ideal for high-speed backbone and horizontal cabling.

F/UTP Shielded Construction

Incorporates an overall foil shield to reduce electromagnetic interference and alien crosstalk, ensuring stable and consistent network performance.

Solid Copper Conductors

Built with solid bare copper conductors for superior conductivity, reduced attenuation, and reliable long-distance signal transmission.

Outdoor-Rated LDPE Jacket

Equipped with a durable LDPE outer sheath designed to withstand outdoor environmental conditions, including moisture and UV exposure.

Enhanced Signal Integrity

Optimized twisted pair design minimizes internal crosstalk and maintains high data integrity across network installations.

Wide Application Compatibility

Suitable for outdoor network runs, campus installations, data centers, surveillance systems, and high-speed enterprise connectivity.

Product Specifications

• Model: GN-C6A-F/UTP-LDPE
• Cable category: Category 6A
• Cable type: F/UTP (Foiled Unshielded Twisted Pair)
• Conductor material: Solid bare copper
• Conductor size: 23 AWG
• Bandwidth: Up to 500 MHz
• Maximum data rate: Up to 10 Gbps
• Jacket material: LDPE (outdoor-rated)
• Outer sheath color: Typically black
• Impedance: 100 ± 15 ohms
• Installation environment: Outdoor
• Standards compliance: ISO/IEC 11801, ANSI/TIA-568.2-D
• Application: 10GBASE-T Ethernet networks
