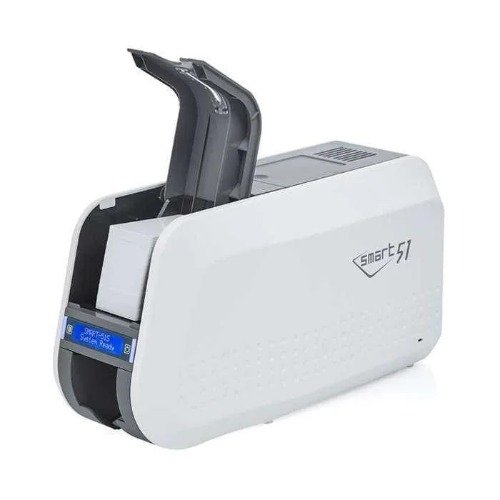

IDP SMART-51S Single-Sided ID Card Printer

The IDP SMART-51S Single-Sided ID Card Printer is a professional direct-to-card printer designed for organizations that need reliable, high-quality production of employee ID cards, student cards, membership cards, visitor cards and other PVC identification cards. It uses direct dye-sublimation printing with edge-to-edge coverage, delivers 300 dpi colour and monochrome printing, and can produce up to 212 full-colour YMCKO cards or 720 monochrome cards per hour under the manufacturer’s stated conditions. The SMART-51S also provides automatic card feeding, a 2-line LCD interface and a durable metal-frame construction, while optional Ethernet, Wi-Fi and card-encoding configurations are available.

Product Features

Single-Sided ID Card Printing

The SMART-51S is designed for single-sided card printing, making it suitable for organizations where the required identification information is printed on one side of the card. The printer uses direct dye-sublimation technology and supports edge-to-edge printing on compatible cards.

Full-Colour and Monochrome Printing

The printer supports both full-colour and monochrome printing. With a compatible YMCKO colour ribbon, it can produce colour identification cards, while monochrome ribbons can be used for applications requiring faster black-and-white card printing. IDP specifies speeds of up to 212 cards per hour for YMCKO colour printing and 720 cards per hour for monochrome printing.

300 dpi Colour Printing

The SMART-51S provides 300 dpi resolution for colour and monochrome printing, allowing card designs to incorporate photographs, logos, text, graphics and other identification information. For monochrome printing, the printer also supports 600 dpi and 1200 dpi resolution modes.

Edge-to-Edge Printing

The SMART-51S supports edge-to-edge printing, allowing the card design to make effective use of the printable surface instead of being restricted to a narrow central print area.

Automatic Card Feeding

Cards are automatically fed into the printer, reducing the need to manually insert individual cards during a printing run. The input hopper accommodates up to 100 cards in normal use and up to 200 cards with the cover open, according to IDP’s specifications.

Support for CR80 and CR79 Cards

The SMART-51S supports ISO CR80 cards, with ISO CR79 supported as an option that is factory installed. It accepts compatible PVC, PET and composite PVC cards within the specified thickness range.

Durable Metal-Frame Construction

The SMART-51S uses a metal frame for the printing engine, providing a robust construction for organizations that require a printer for ongoing card-production work. IDP positions the model for mid- to high-volume ID programs.

2-Line LCD and LED Controls

A 2-line LCD display and two LED buttons provide front-side operational controls and printer status information, making routine operation easier for users responsible for card production.

Optional Network Connectivity

USB connectivity is provided, while Ethernet and Wi-Fi are available as optional configurations. This gives organizations flexibility when deploying the printer as a local workstation printer or as part of a networked card-printing environment. The exact connectivity configuration should be confirmed before ordering.

Optional Card Encoding

The SMART-51S can be configured with optional card-encoding capabilities, including magnetic stripe, contact and contactless smart-card encoding. These are configuration options and should not be assumed to be included on every SMART-51S unit.

Upgradeable to Dual-Sided Printing

The SMART-51S can be upgraded to support dual-sided printing by adding the appropriate Flipper module. This provides an upgrade path for organizations whose card-printing requirements may expand from single-sided to dual-sided cards.

Product Specifications

• Brand: IDP
• Model: SMART-51S
• Product type: Single-sided ID card printer
• Printing technology: Direct dye-sublimation
• Print mode: Simplex / single-sided
• Print area: Edge-to-edge
• Colour resolution: 300 dpi
• Monochrome resolution: 300 dpi, 600 dpi and 1200 dpi
• Monochrome print speed: Up to 720 cards/hour
• YMCKO colour print speed: Up to 212 cards/hour
• Card feeding: Automatic
• Card size: ISO CR80; ISO CR79 available as a factory-installed option
• Card thickness: 0.38–1.0 mm (15–40 mil)
• Supported card types: PVC, PET and composite PVC
• Input hopper: 100 cards; up to 200 cards with cover open
• Output hopper: Front: 40 cards; rear: up to 100 cards with optional rear-side stacker
• Display: 2-line LCD
• Control panel: 2 LED buttons
• Memory: 64 MB RAM
• Standard communication: USB
• Optional communication: Ethernet and Wi-Fi
• Optional encoding: Magnetic stripe, contact smart card and contactless smart card
• Operating temperature: 15–35°C
• Operating humidity: 35–70%
• Power supply: AC 100/220 V, 50/60 Hz
• Power consumption: 48 W
• Dimensions: 165 × 390 × 210 mm (W × L × H)
• Weight: 4.5 kg
• Dual-sided printing: Optional with Flipper module
• Manufacturer: IDP
• Manufacturer warranty: 3-year Advanced Exchange warranty according to IDP Americas’ current SMART-51S specification. Regional warranty terms should be confirmed for the unit supplied in Kenya.
