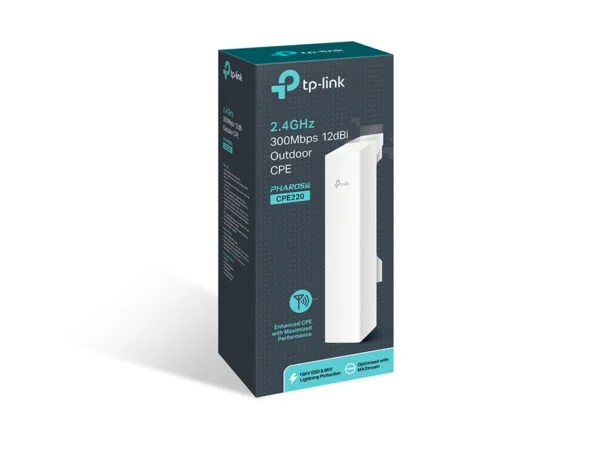

TP-Link TL-CPE220 2.4GHz 300Mbps 12dBi Outdoor CPE

The TP-Link TL-CPE220 2.4GHz 300Mbps 12dBi Outdoor CPE is designed for long-range outdoor wireless networking applications such as point-to-point and point-to-multipoint connections. Built with a high-gain 12dBi directional antenna and powerful wireless transmission capabilities, it provides reliable connectivity for rural internet distribution, wireless surveillance networks, and outdoor wireless bridging. Operating on the 2.4GHz band with speeds of up to 300Mbps, the TL-CPE220 delivers stable performance over long distances. The device includes TP-Link Pharos Control technology, which offers centralized management and advanced wireless optimization tools. Its weatherproof enclosure and passive PoE support make it suitable for outdoor installations in challenging environments.

Product Features

300Mbps wireless N performance

Supports wireless speeds of up to 300Mbps on the 2.4GHz band for stable long-distance wireless connectivity.

Integrated 12dBi directional antenna

The built-in high-gain antenna improves signal strength and enables reliable outdoor point-to-point and point-to-multipoint links.

Pharos Control management system

Includes centralized management software that allows administrators to monitor and manage multiple outdoor CPE devices from a single interface.

Optimized for outdoor wireless transmission

Advanced wireless parameters and signal optimization features help improve stability and long-distance communication.

Weatherproof outdoor enclosure

Designed with a durable housing that protects the device from harsh weather conditions including rain, wind, and dust.

Passive PoE support

Allows both power and data to be delivered through a single Ethernet cable, simplifying installation for outdoor deployments.

Product Specifications

• Model: TL-CPE220
• Brand: TP-Link
• Device type: Outdoor CPE access point
• Wireless standard: IEEE 802.11b, 802.11g, 802.11n
• Frequency band: 2.4GHz
• Maximum wireless speed: Up to 300Mbps
• Antenna: 12dBi directional antenna
• Ethernet port: 1 x 10/100 Mbps RJ45 port
• Transmission distance: Up to several kilometers depending on environment
• Wireless modes: Access point, client, bridge, repeater
• Security: WPA, WPA2 encryption
• Power method: Passive PoE adapter included
• Operating temperature: -30°C to 70°C
• Enclosure: Weatherproof outdoor design
• Management: TP-Link Pharos Control software
